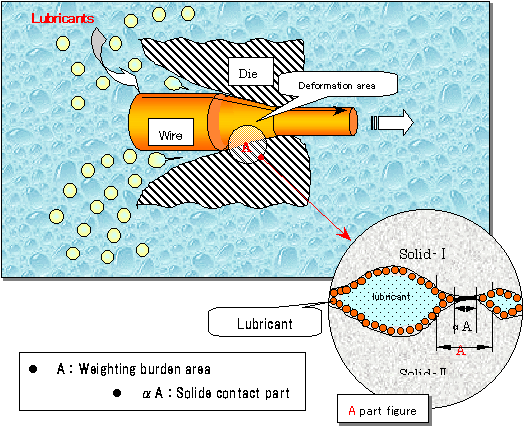

Although cable drawing process is a comparatively easy method, it has deep technical phases and involves various technical engineers. Our lubricating oils are produced by the application of front knowledge of front knowledge of surface chemistry, synthetic chemistry and further gtribology chemistryh Cable drawing process is illustrated in Fig-1,@as a friction model. Between the two faces in the Fig-1 our lubrication oils provide the high efficiency of plastic process and the cooling function against processing heat.


The manufacturing process is divided into rough drawing, medium drawing, fine drawing, and extra-fine drawing.

In almost all case, water soluble drawing oils are used and their ingredients and emulsification structure change according to the diameters of cables and the velocity of drawing process.

1) Function
Drawing oils have two different functions, regardless of the cable size. One is L:@Lubricity function@to protect the cable from surface damage and burning. The other is sludge D: Dispersion force function to disperses the metal friction sludge and the Metal reaction product between the metal and the oil to eliminate from the inlet of drawplate and capstan.

For rough drawing and so-called in-line(low speed)process in which drawing machine and the next process are connected, the drawing oil should be emulsion type based on High viscosity and its density should be set up to 10% more or less. And the weight of the ratio of L to D is declined to L.

For medium drawing, being final sage of material process,@the drawing oils have to be selected from the view point of making good material without snap troubles for the next step of process.@So the weight of the ratio of L to D is shifted to D side.

For fine drawing,@comparing to rough and medium drawings, the ratio of L to D is more shifted to D side to make final merchandise more clean surface. And snap accident is more likely to happen from this stage due to sludge of capstan and drawplate.
For the sake of increasing cleaning effect, not only the fundamental lubricity is decreasing but also metal ion soluble into the system is increasing. And the surface of processed material is decreasing but also metal ion soluble into the system is increasing. And the surface of processed material comes in unstable situation, which leads to changing color problems after the elapse of days. Too much using surfactants to increase the cleaning effect causes of make bubble. And to control the bubbles, using much bubble control chemicals leads to poor gilding effect and bad vanish coating. For extra-fine drawing, more washable drawing oils are used for bonding magnetic wires purpose.

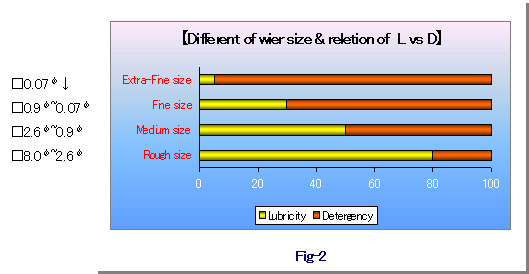

The relation between Diameter and Lubricity & Dispersion force is illustrated in Fig-2.

2) Ingredients

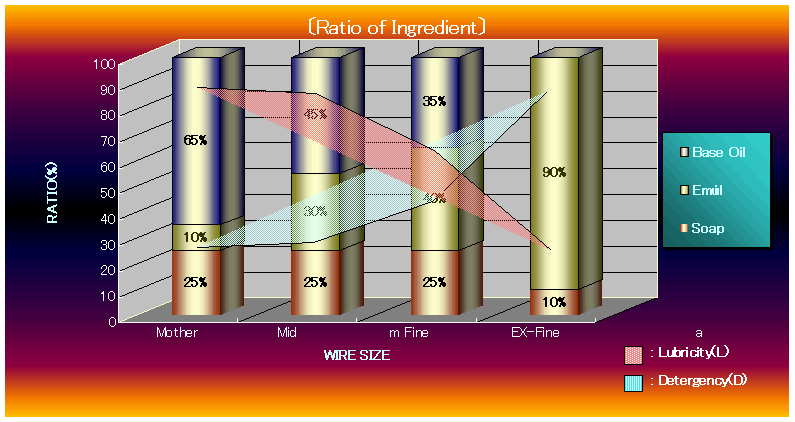

Base oil: mineral oils, animal or vegetable/plant oils and synthetic oils are used.  According to the size of diameters of cables, the balance of contents changes to adjust viscosity.Oiliness chemicals: materials to react with metal, such as soap, ion tic activator and fats and oils.

Emulsifier: materials to disperse basic oils and oiliness chemicals into water.  The adding quantity and species change according to the quantity of basic oils and oiliness chemicals.

The molecule weight of basic oils in case of rough drawing ranges from 1000 to 600. For the rest of drawings, The molecule weight steps down by 200 respectively.  For fine and extra-fine drawings, esters with low viscosity and good lubricity are used.As oiliness chemicals react with metal and make some complex and accelerate the deterioration of the liquid.Their activity strength has to be considered carefullyDEmulsifierfs emulsify and disperse basic oils, They have also oiliness effect and sludge disperse force effect.

3) Maintenance

Except for some special cases water-soluble drawing oils are mainly used for their cooling effect and prices. Therefore, the maintenance of the liquid has to be paid special attention to water-caused problems. Particularly, comprising ingredients ratio will be changed.  Metal ions, outEcomings of deteriorated ingredients and the development of bacteriafs deteriorate the oil functions.  The increasing such kind of materials in drawing oils invites physical troubles of cutting and chemical changing matter after completion as merchandise.

By measuring the quantity of these by-products and investigating their characters the using situation of the drawing oils could be recognized. Arranging to prevent the drawing oils from outEcoming of such by-products is one of the best methods to appeal as good quality guarantee.


As drawing process is developing to compactedE multiplied and automatic directionsE  choosing and using adequate drawing oils comes to more critical element in manufacturing electric cables.  We hope our drawing oils to be used adequately with fully understanding of their characters.
